RF Frequency Cover	20Mhz – 7,5GHz
Total Output Power	From 50 W to 100 W per channel (can be customised)
RF Frequency&Output Power Programmable	YES
Modular Construction Design	YES, 16 modules (optional up to 20), not hot-swap
System Control	External control tablet, Threat-based task programming interface, other options
Jamming Module	16 channels (optional up to 20), GaN PA, DDS source
Antenna Type	Omnidirectional, circular polarization
Antenna Number	17 (optional up to 21)
Housing	Aluminum, plastic, IP66, vibration-resistant
Power Supply	Autonomous 28V rechargeable battery
Military Standard design	MIL-STD-810, IP67
Smart Cooling System	Fan-based smart cooling
System Protection	NO
Operating time	Up to 5 hours in jamming mode, up to 120 hours in detection mode (can be adjusted upon request)
Total power consumption	=1,6 kW (jamming mode)
Antenna roof platform	Roof mounted vehicle trunk
Device Size	1 Ext. unit (1800mm900mm560mm)
Device Weight	60 kg +45 kg Battery
Operating Temperature Range	-40°C to +60°C
Operating Humidity	Up to 95%
Standard Accessories:	Charger, switching cables, control tablet, cases, battery, field manual
Jamming Source	DDS, GaN amplifiers
Detection Method	Passive detection using RSSI, signal classification and Al-based adaptive jamming
100% Supression range	80 m- 1000 m
Function	Automated spectrum scan, detecting, frequency analyzing; Automated multi-threat suppression
Additional Optional Equipment (Available upon request)
Equipment	Extra battery pack, gasoline or diesel generator

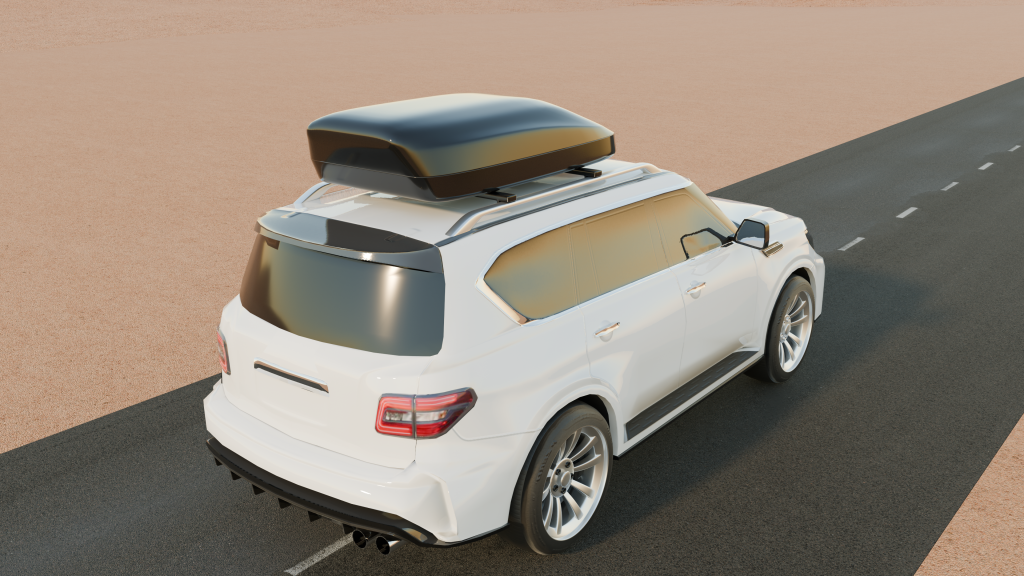

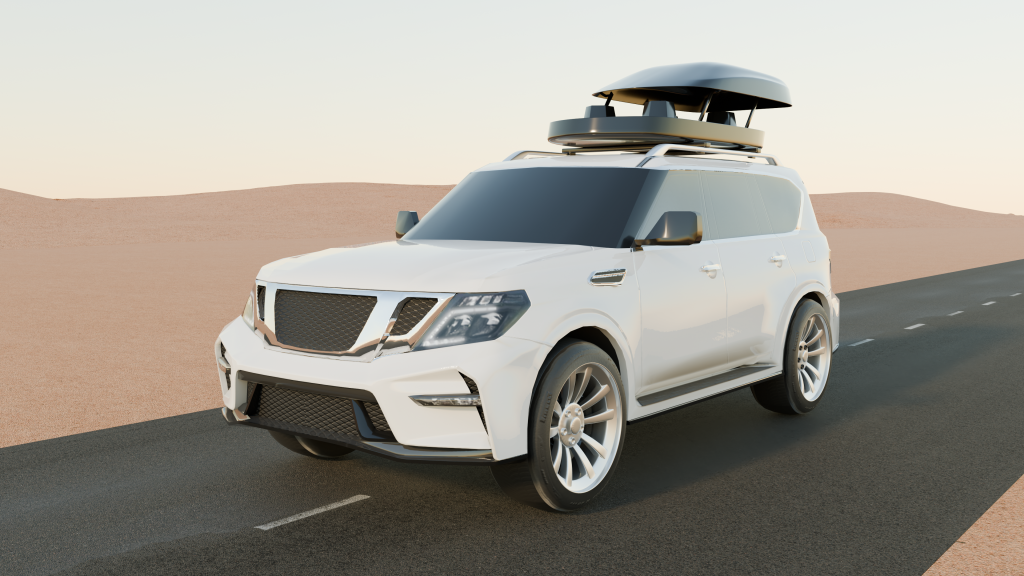

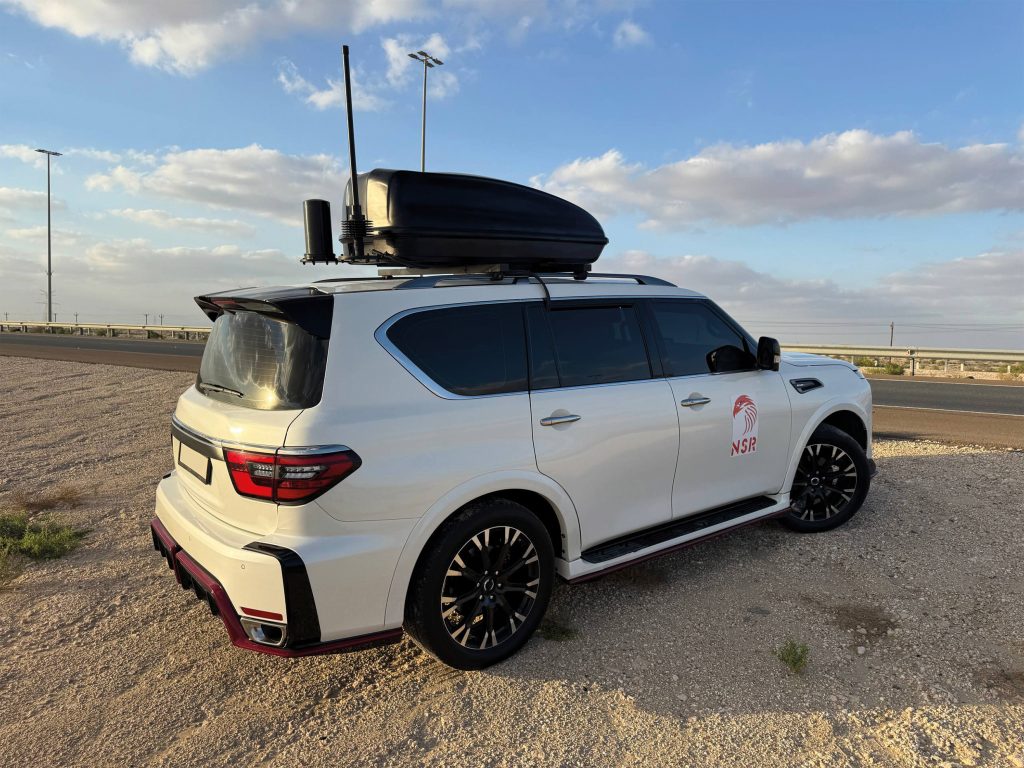

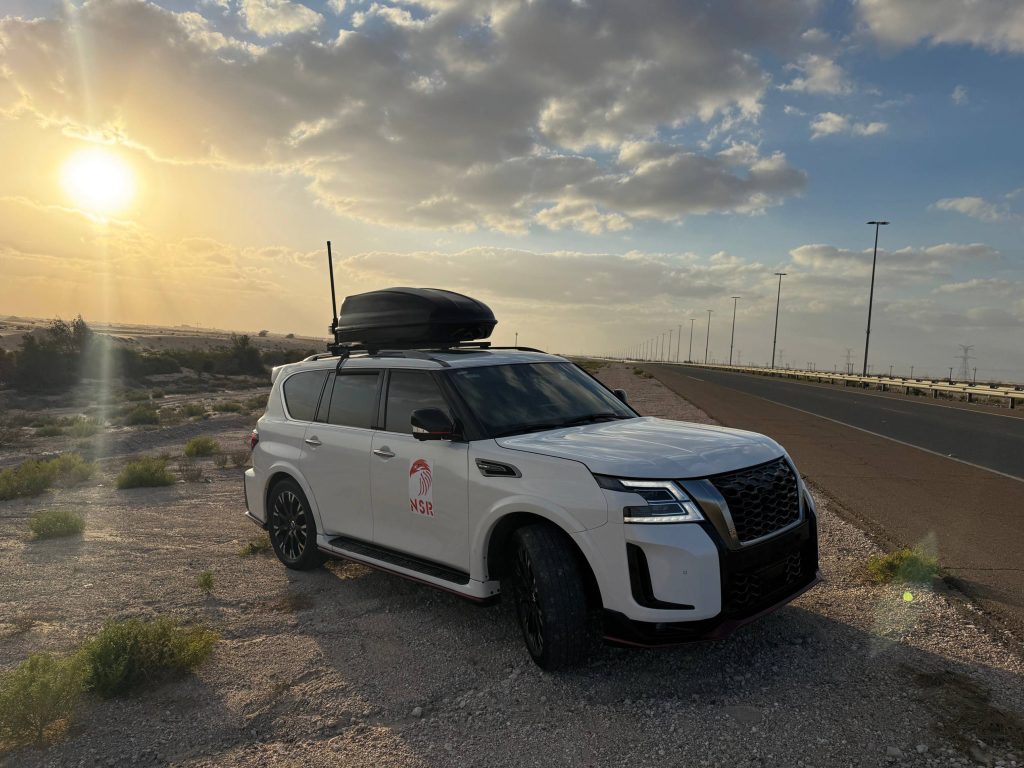

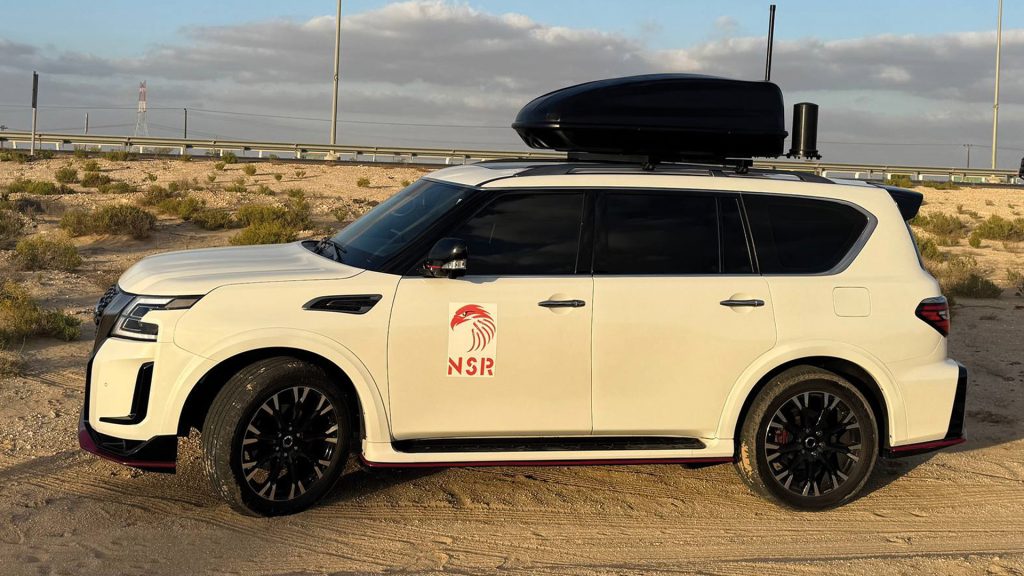

The NSR VIP EW System is a specialized advanced electronic warfare (EW) system designed with a special focus on protecting VIPs, high-ranking officials, delegations, and the venues where they are located. It is a modular mobile platform mounted on a vehicle that integrates spectrum detection devices, powerful jamming units, wideband antennas, and intelligent components into a compact enclosure, ensuring high mobility and instant deployment at any point along a route or at an event venue.

Thanks to real-time multi-frequency scanning, software-defined architecture, and advanced signal synthesis algorithms, the NSR VIP EW provides unparalleled suppression of modern and emerging communication threats: FPV-drone control channels and other UAVs, GNSS signals (navigation and positioning), telemetry, Wi-Fi, conventional radio networks, as well as remotely controlled explosive devices (RCIEDs).

The system is capable of simultaneously neutralizing multiple threat types at short to medium ranges, creating a reliable “electronic dome” around the protected individual or group. The integrated “detection → identification → instant suppression” principle guarantees proactive protection of low-altitude airspace 24/7 in any conditions — from urban streets and events to rural routes and temporary residences.

The NSR VIP EW is particularly in demand in scenarios where the threat level is at it shighest:

• Personal protection of VIPs
• Escort of motorcades and delegations
• Security for high-level events (summits, conferences, public speeches)
• Ensuring safety in areas with elevated risk of commercial and improvised kamikaze drones

Key Advantages for VIP Protection Tasks
