RF Frequency Cover	Detection 20 Mhz – 7,5 GHz, Jamming 20 Mhz – 7,5 GHz Configurable jamming within specified frequency bands (up to 9 channels) can be adjusted upon request
Total Output Power	50 W per channel
RF Frequency&Output Power Programmable	YES, via tablet
Modular Construction Design	YES, 9 modules, not hot-swap
System Control	External control module
Jamming Module	9 channels, GaN PA
Antenna Type	Omnidirectional, circular polarization
Antenna Number	10
Housing	Aluminum, IP67, vibration-resistant
Power Supply	Built-in 28V rechargeable battery
Military Standard design	MIL-STD-810, IP67
Smart Cooling System	Fan-based smart cooling
System Protection	NO
Operating time	Up to 2 hours in jamming mode, up to 24h in detection mode
Total power consumption	=0,9 kW (jamming mode)
Antenna roof platform	NO
Device Size	730X400X300 mm
Device Weight	Up to 24.5 kg (depends on the battery configuration)
Operating Temperature Range	-40°C to +60°C
Operating Humidity	Up to 95%
Standard Accessories:	Charger, switching cables, control tablet, spare fuses, Load-bearing vest (LBV)
Jamming Source	GaN amplifiers, Reference oscillator/generator
Detection Method	Passive detection using RSSI and signal classification
100% Supression range	From 60 m to 300 m
Function	Automated spectrum scan; Al-based adaptive jamming; multi-threat suppression

• Optimized compact design enabling complete freedom of movement
• Systems scalable protection provides enhanced protection at both the individual and squad levels
• Advanced signal processing ensures sustained operational relevance
• Power efficient – engineered for low power consumption with extended battery life

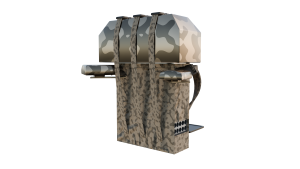

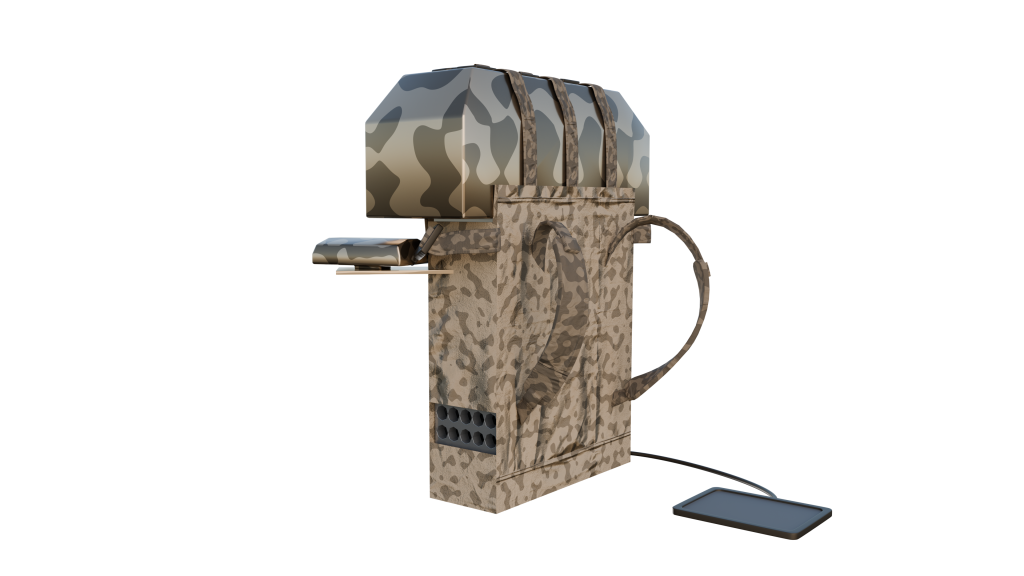

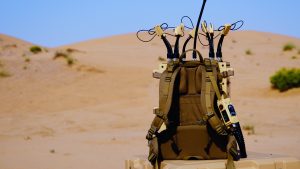

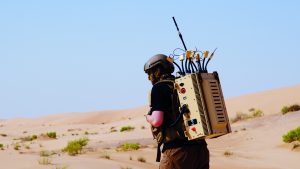

The NSR®PTEW system (Portable Tactical Electronic Warfare) is a dedicated personal electronic warfare technology. It represents the latest achievement in the field of synthesis of RF and digital signals. It’s a really game change equipment. It changes the idea of protection and can be used in most military scenarios. Our PTEW system is one of the components of our latest complex active protection. It is not just a RF jammer, which you can easily find on the market, but a real complex of RF intelligence, with the analysis of signals using AI and a selective means of RF jamming. It can also be used with our last products with visual UAS detecting, such as FPV-UAVs and with Tactical Laser automatic activation Optical suppressor System (TLOS). Constant monitoring and analysis of the ether allows you to maintain the secrecy of the protected object, until the moment of an immediate threat. This unique feature allows you to avoid possible detection ahead of time. The jamming mode is activated only in danger detection situation, after which the system switches back to monitoring and analysis mode, and can’t be detected by the enemy intelligence systems. This enhanced functionality is particularly effective in dealing with new threats, including unmanned aerial systems (UAS), interceptor UAVs and other RF-controlled threats. This system is an RF intelligence and jamming system, includes both capabilities, and also shows the treat direction. Designed with the dismounted soldier in mind, the NSR® PTEW system integrates cutting-edge, field-proven technology into an ultra-compact, lightweight form factor that offers unmatched portability without sacrificing effectiveness.

• Simultaneous jamming of multiple threats
• Advanced jamming algorithms for protection against all known drone threats, including GNSS
• Fanless cooling for silent operation and high reliability in exreme environment
• Can be programmed and controlled via LAN interface
• Possible to set the required frequency range
• User-friendly and simple threat-based mission programming interface
• Monitoring and protection against VSWR of the active antennarelevance

• Optimized Compact Design: The system is engineered with a streamlined profile, free from external protrusions, minimizing snag hazards and enhancing portability in rugged environments.
• Operational Agility: Enables complete freedom of movement, vital for maintaining maneuverability in dynamic combat scenarios.
• Scalable Protection: The system provides enhanced protection at both the individual and squad levels, with adaptive threat response capabilities that allow for real-time adjustment based on evolving battlefield conditions.
• Advanced Signal Processing: Incorporates flexible, software-defined signal modulation to address both current and next-generation RCIED threats, ensuring sustained operational relevance.
• Power Efficiency: Engineered for low power consumption with extended battery life, supporting prolonged missions without the need for frequent recharging.
• User-Centric Design: Features an intuitive interface, enabling rapid deployment and operation even under stress, reducing cognitive load on the soldier.

The NSR®PTEW system’s modular architecture and versatile signal processing capabilities ensure comprehensive coverage across the electromagnetic spectrum, effectively countering a wide range of threats currently deployed on the battlefield, as well as those anticipated in future combat environments.
