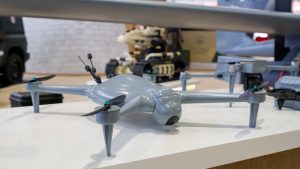

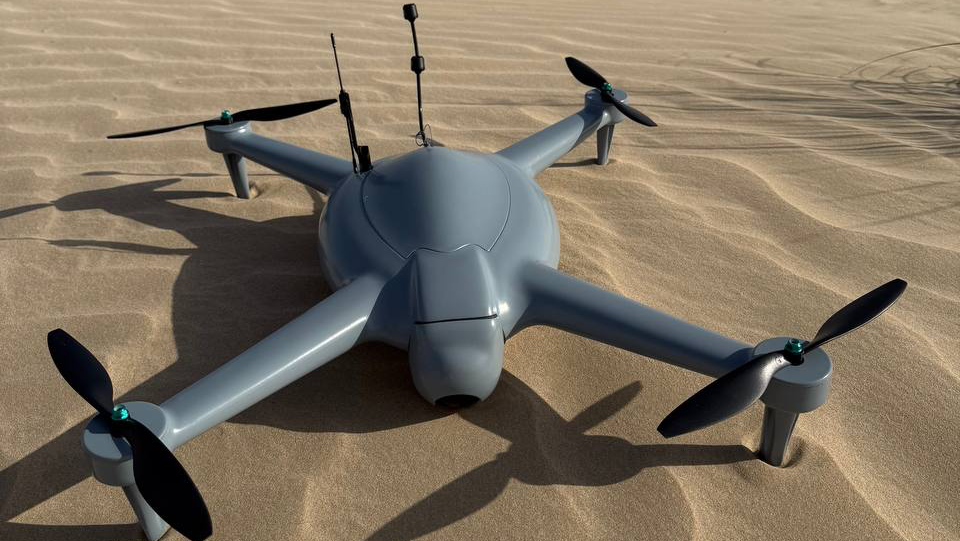

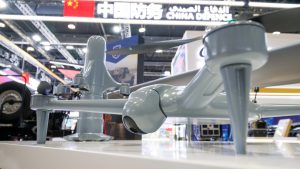

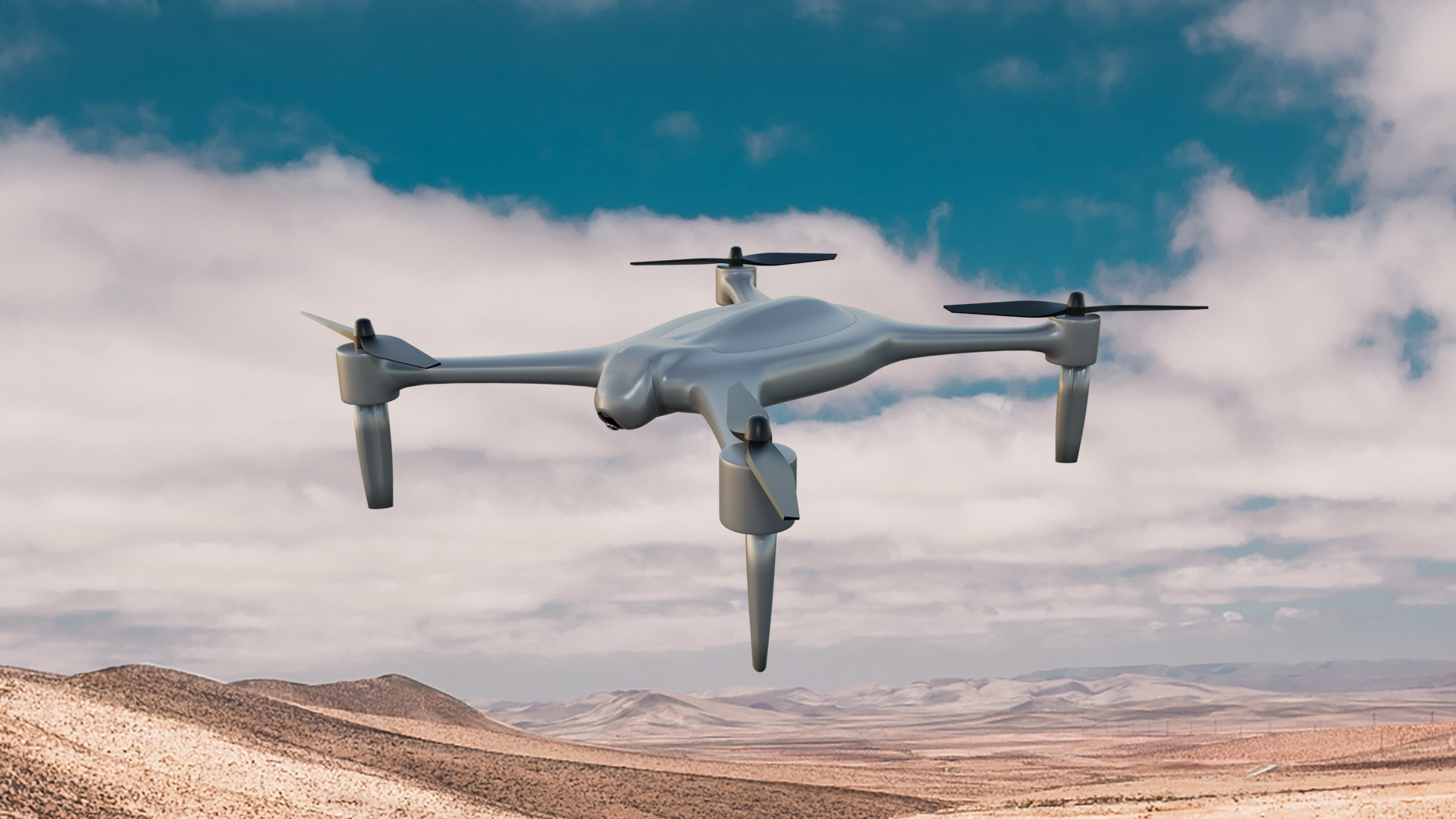

The Combat UAV with the function of dropping striking elements



Size | 13 inch |
MTOW | 6 kg |
Engine type | electric |
Maximum Range | 36 km |
Cruise Speed | 110 km/h |
Max flight time | 30 min |
Endurance | |
Data Link Range | |
Attack Guidance | GNSS, Visual Navigation optical guidance, automating aiming using AI, Optical fiber |
Payload | 5 kg |
FPV – UAV, 13‘’, waterproof housing, can be used for naval missions. Uses LORA, ELRS, CRSF protocol control. Сan be equipped with shaped or high-explosive fragmentation charges. There is a possibility of remote detonation. Charge initiation is possible remotely or using a magnetometer, barometer, altimeter, accelerometer, lidar. Optical target guidance and target capture allows to avoid enemy electronic warfare.
- Frequency offset control and its own antennas for each of the frequency ranges: 190-1020 MHz, 2100GHz-2700 MHz
- Up to 3 receivers with auto-switching in case of loss of communication – Night camera – Thermal chamber with a rotary mechanism
- Analog camera with 30X zoom – Servo for release system
- Target capture system – Retrofitting with navigation modes: point hold, altitude hold, auto-return with auto-landing, flight on a flight assignment
- Electronic warfare direction finding;-Fiber-optic video transmission and control connection up to 10 km
